HP microserver

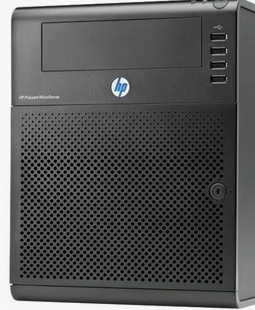

Gen 7

  • CPUs:
    • AMD Turion II Neo N40L (2C) (1,5G)
    • AMD Athlon II Neo N36L (2C) (1,3G)
  • 4 x 3,5“ SATA
  • 1 x 5,25 bay (option to mount 4×2,5” adapter or 6×2,5“ adapter)
  • 1 x eSATA
  • 2 x PCIe
  • VGA DB15
  • LAN 1gbit (no jumbo frames)

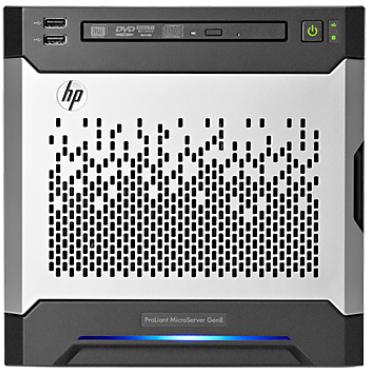

Gen 8

  • CPU
    • Xeon E3-1275 V2 (4×3,9 + HT) 22nm 77W
    • Celeron G1610T
    • Core I3 3240
  • DDR3 Dual channel 16GB
  • 1 x SLIM CD bay
  • 2x USB2 2x USB3
  • VGA DB15
  • 2x LAN ethernet
  • 1x iLO ethernet
  • PCIe x16

Gen 9

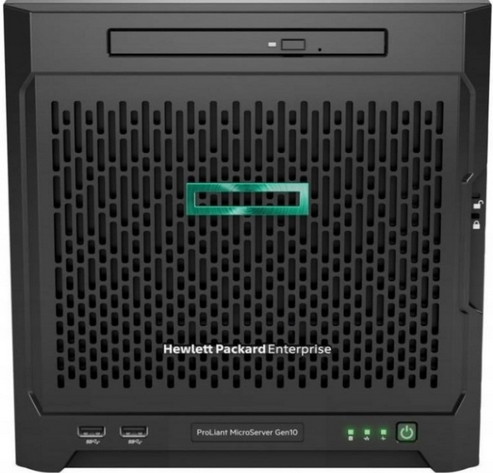

Gen 10

  • AMD Opteron X3216 APU (2C) TDP 15W
  • DDR4 32GB
  • 1x VGA, 2 x DisplayPort,
  • 2x LAN (RJ-45), USB 3.0
  • 2 x PCIe
